| B | Number of power supplies for the module: | 1, 230KVA transformer configuration, input 380V, output 110V/220V two groups of voltage switching, can simultaneously control 4 sets of aging equipment (charging power according to 1500W configuration)
2, program control power supply, configure 2 DC power supply: meet the voltage 10V~120V linear adjustment, 200A; The total current of a single point does not exceed 16A

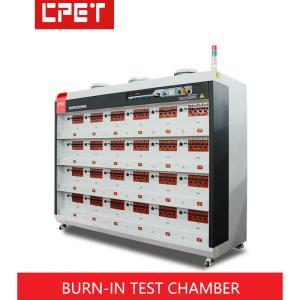

3. A single aging cabinet is configured with 48 DC isolated energy-saving loads; 1-500V/0.5-10A/CH, 100W/CH, 4CH (4 channels), total 400W
4. A single aging cabinet is configured with CP8402/12 bits; Load 6400W, 12 grid-connected inverters, 6600W
5. A single aging cabinet is configured with CP2119/24 units; (CP2119 supports QC4.0, PD3.1, FCP, SCP fast charge protocol), single module 8 channels
6. A single aging cabinet is configured with four bidirectional charging modules.
7. A single aging cabinet is equipped with 72 PFC switching power supplies, 36V/16A/600W, 3 inputs per product, and no charging parameters are collected
|
| F | Charging/discharging interface: | 1, each channel is equipped with a charging port: AC input stable socket 1+ card socket 1 (internal parallel), DC input XT60+5.5*2.1+5.5*2.5+Type C+USB
2, each channel is configured with discharge port; The AC output port is the PIN end +50A Anderson terminal, the DC port
5.5*2.1+5.5*2.5+USB+Type-c+ fence terminal 2PIN (confirm according to customer requirements) |
